Mach3 Controlled Stable Metal Engraver Machine with 4 Axis/ Oil Mist Cooling
Application
Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.
Features
1. Cast Iron as a whole with vibration Temper aging treatment ensures no deformation for long time.
2. Cast iron Working table with platform moving type. Durable without deformation enable positioning more preciously .
3. Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.
4. Three axis with precision ball screw transmission ensure the engraving speed and accuracy.
5. High variable speed 3.2KW water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.
5. China Leadshine hybrid servo motor and driver for XYZA-axis, ensuring high speed and precision working

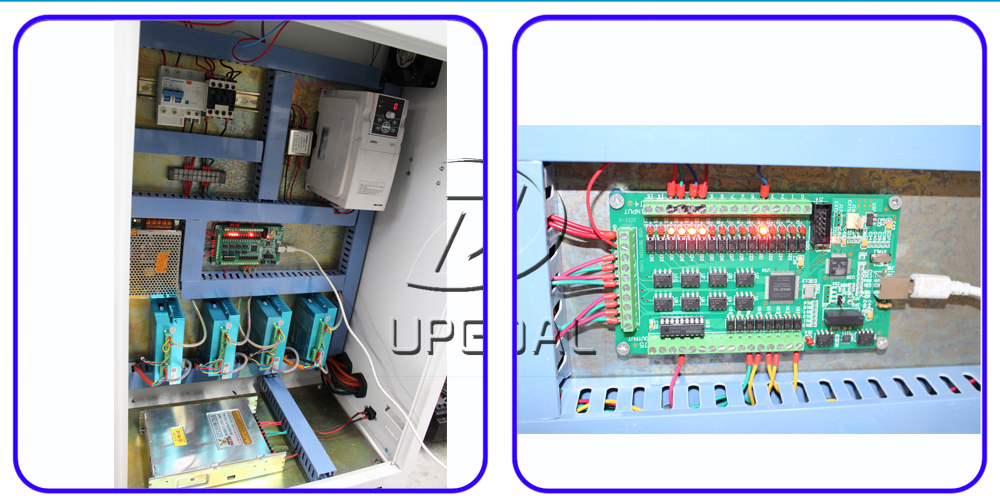

6. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.
7. Oil mist cooling system, ensuring the cooling for the metal & hard materials, improving the processing precision.
8. Half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.
9. Mach3 4 axis control system, with USB port for desktop or laptop computer, supporting XYZA-axis moving together, showing the processing path , more convenient.
10. High precision fixed auto tool calibration, more convenient for operation.
11. 4th axis rotary axis, diameter 160mm, working length 600mm, reduction gear transmission.
12. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.
13. Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.
14. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
Technical Parameters
| Effective working area | 600(X)mm*600Y)mm*250(Z)mm |
| Materials | Cast iron machine bed & working table & gantry & Z-axis |
| Protection cover | Half cover |
| Working table | Cast iron with T slot |
| Moving type | Platform moving |
| Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
| Transmission | Lead ball screw for XYZ-axis |
| Driving mode | China Leadshine hybrid servo motor and driver |
| Spindle motor | 3.2kw water cooling |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar |
| Voltage | AC 380V+ 10%, 50/60Hz, three phases or AC 220V+ 10%, 50/60Hz, sinle phase |
| Traveling speed | >8000mm/min |
| Engraving speed | >6000mm/min |
| Machine accuracy | 0.02mm |
| Control system | Mach3, 4 axis, with USB port |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Cooling system | Oil mist cooling system |
| Tool calibration | Auto, fixed type |
| Certificate | CE |
Reference Parts Photos

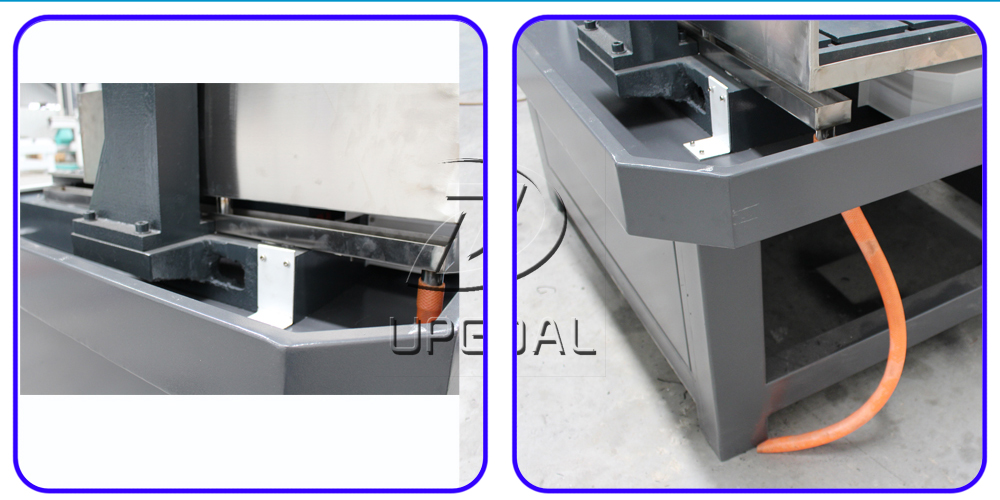

Heavy duty cast structure

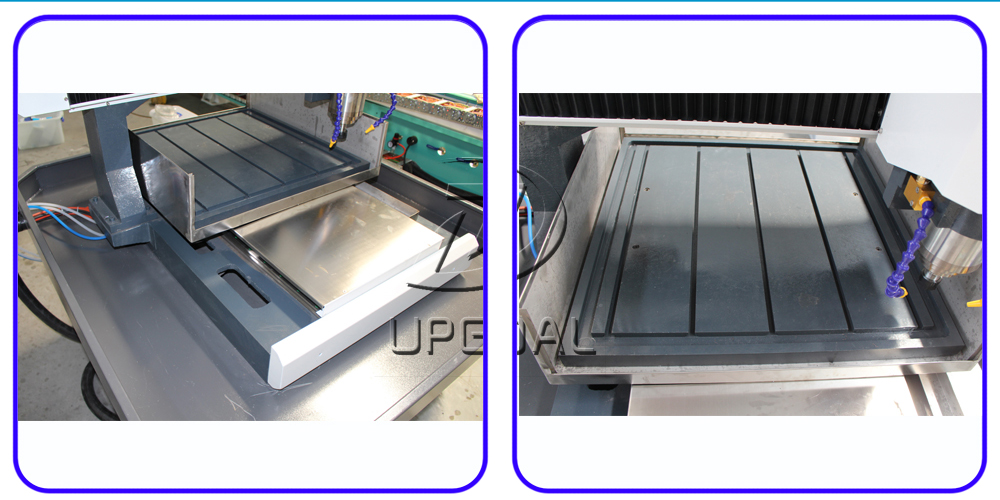

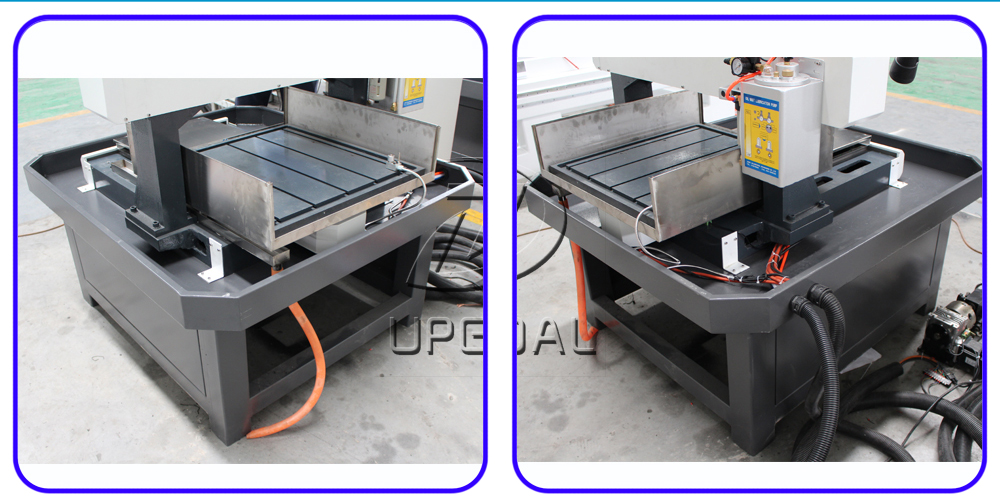

cast iron T slot working table platform moving type

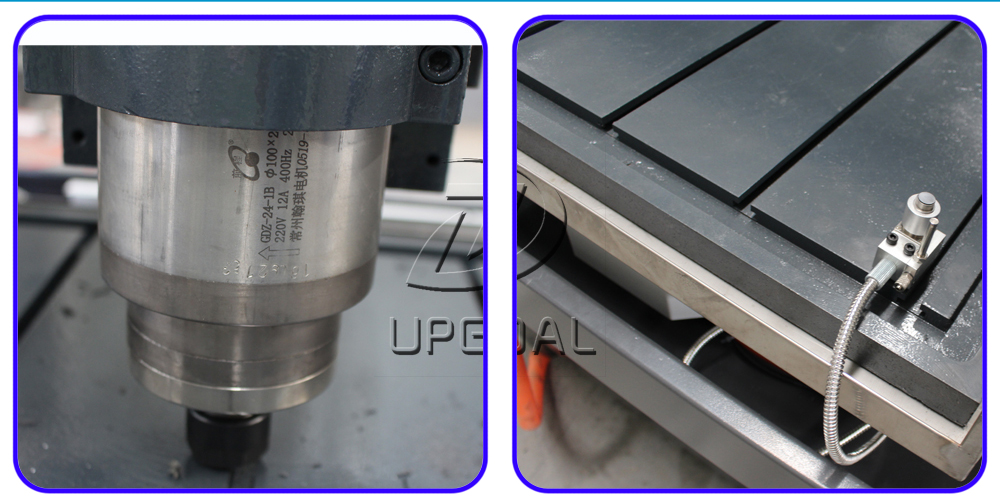

3.2kw water cooling spindle, with fixed auto tool calibration

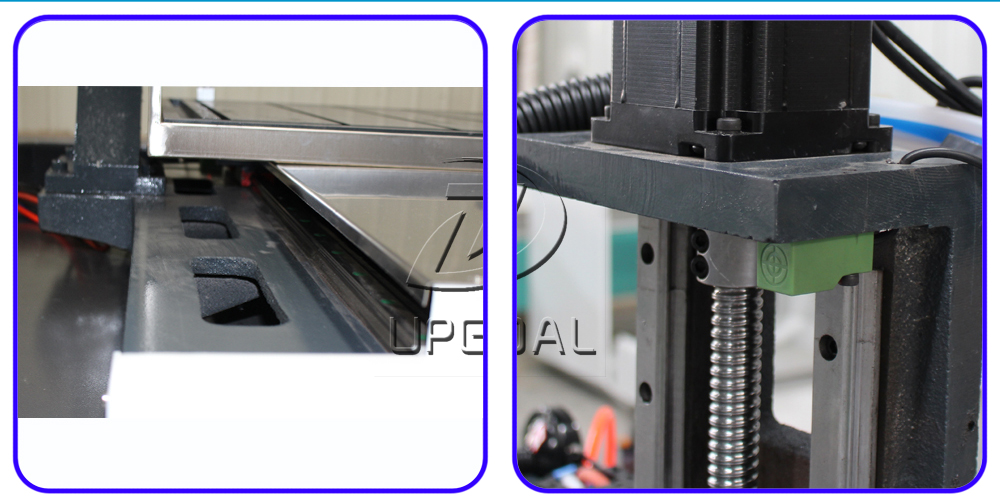

Linear square guide rail, Hiwin, Taiwan and lead ball screw transmission for XYZ-axis
Oil mist cooling pump

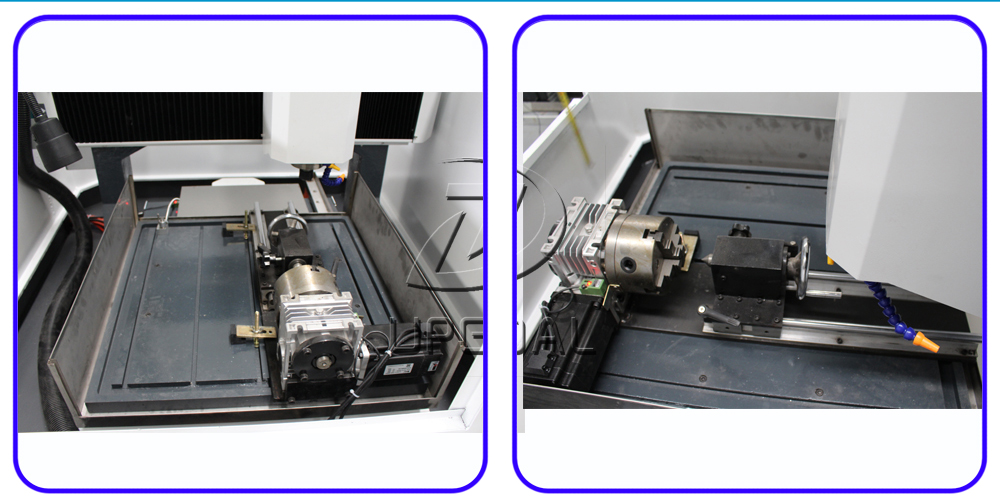

4th axis rotary axis, diameter 160mm, working length 600mm, reduction gear transmission

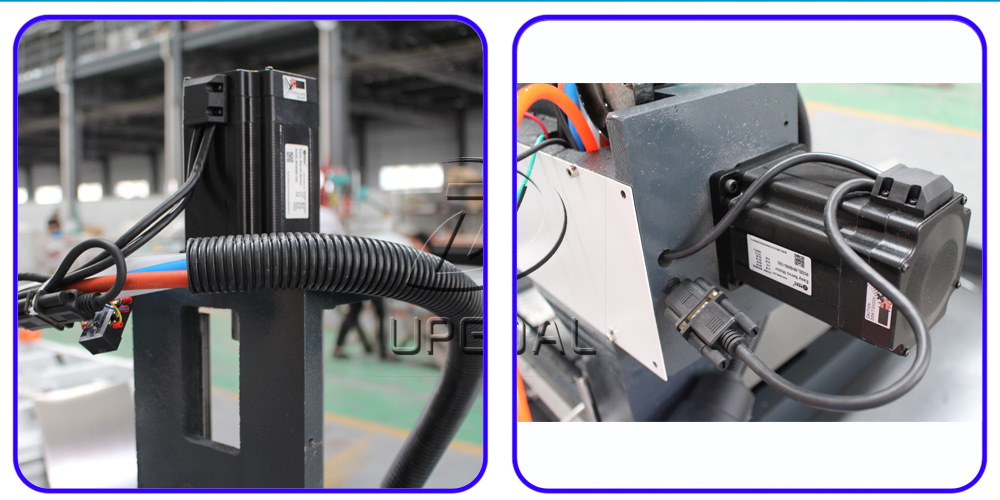

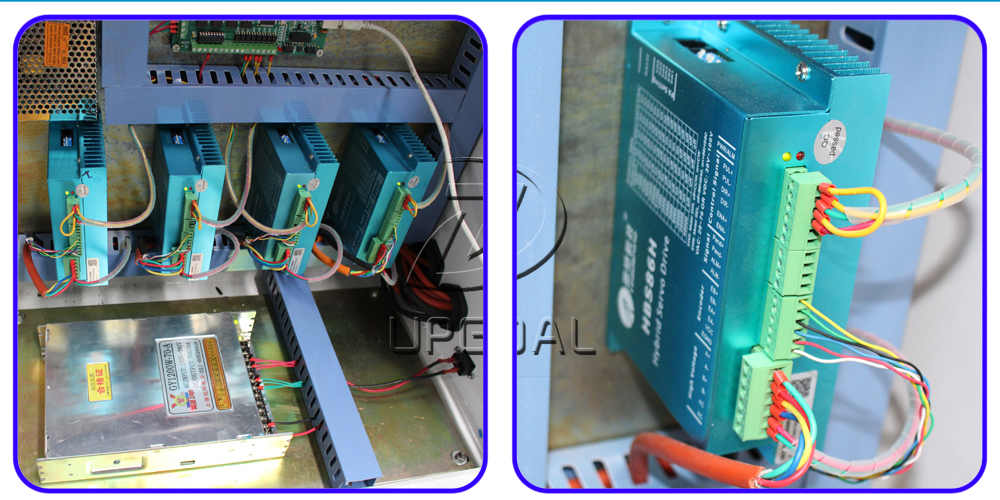

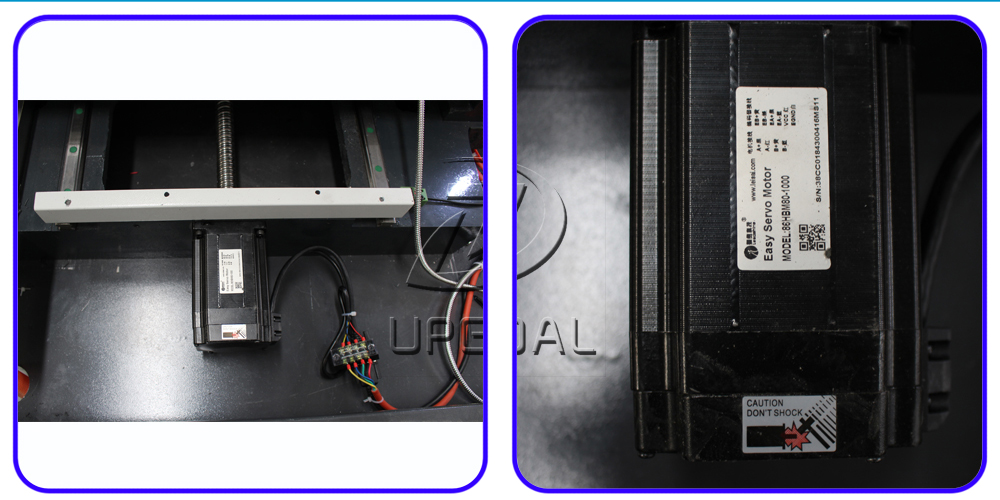

Leadshine hybrid servo motor and driver for XYZA-axis

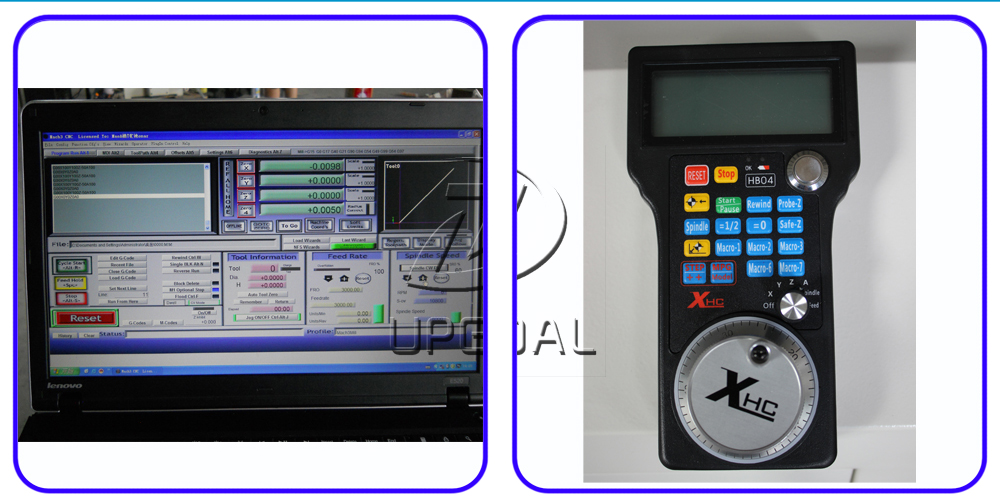

Mach3 4 axis offline control system with wireless handwheel
Stainless steel water slot

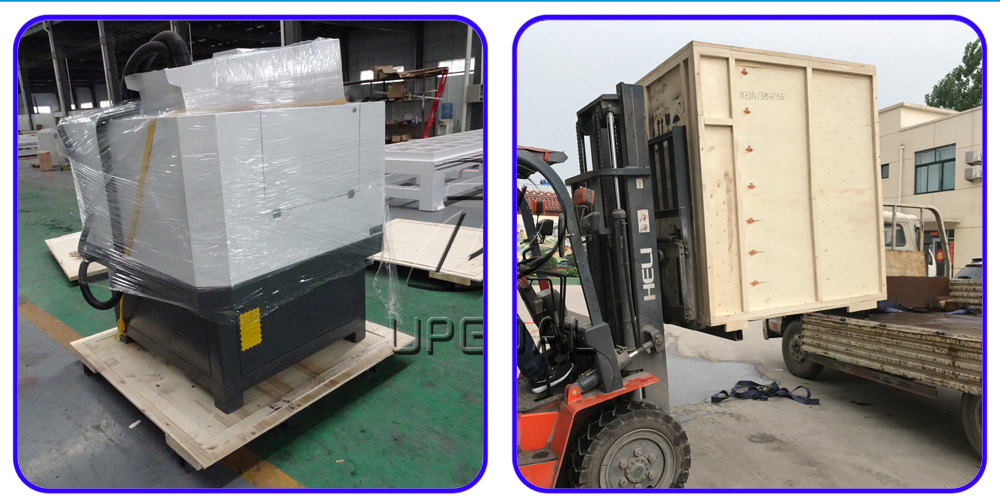

Packing

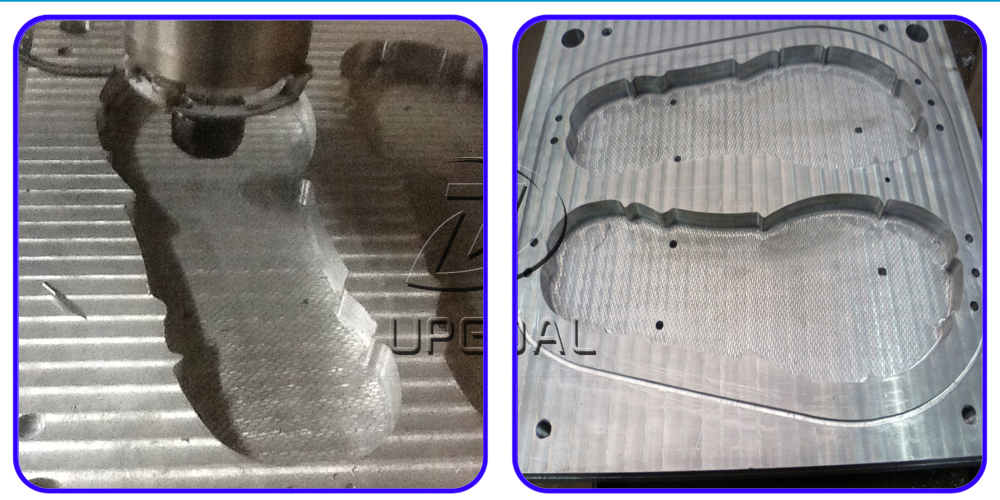

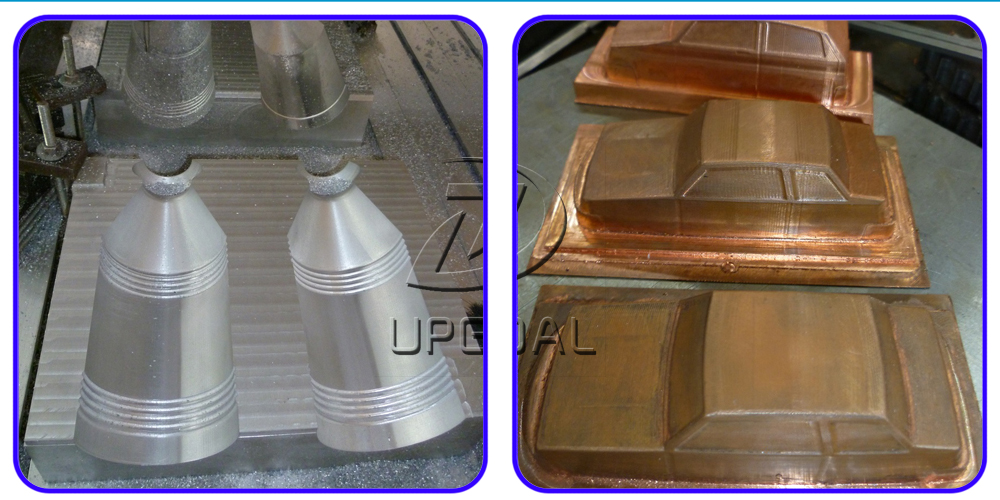

Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=VoeB6hUbJ1E
For more information, just feel free to contact us!
